The Mysterious System Part II

And so, after bringing in the system back to the office, Boss and I gave it the once-over. It a very mysterious system indeed. Initially, I struck it off as just a system where the seller tried to pull a fast one and polished the casing and also removed the serial numbers, etc. But after looking at it thoroughly, I was really stumped.

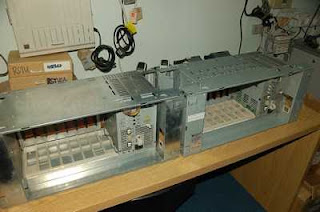

OK, so I put the two cabinets side by side. Normally, they
look the same, which is rightly so as both base and the
expansion cabinets were designed to be stackable. But if
you look closely, there is a small difference.

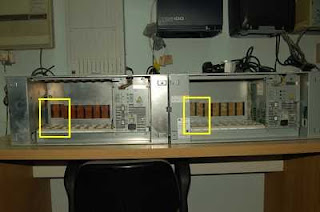

In a normal Base cabinet, the connectors for the CPU
cards are designed to be placed slightly higher up
than the ones for the interface cards. Here, with the
normal Base cabinet, this is what it would look like.

But on the mysterious expansion cabinet, the design
was the same too. In fact, for a normal expansion
cabinet, the first two connectors would line up with
the rest. So, this is really different. I would have
thought the seller put in a Base motherboard into an
expansion cabinet. But who would want to do this?

Another point is that on the Base cabinet, you would
have connectors for the other expansion cabinets to
connect to. Only a Base cabinet would have these
connectors to communicate with the other cabinets.

And on a normal expansion cabinet, they would only
have these connectors. But how on earth can a Base
motherboard have expansion connectors?

Boss mentioned he did hear of such system, most
probably a demo unit, which, I assumed could be
a prototype or just a real demo unit to show some

Publish Post

customers how a Base or Expansion unit works.
With this, you can have either way. And we looked
at each other, like boys who have found a secret....

Where's the PC?

"OK. I'm here. So where is the PC you want me to install the software?"
"Its in there"
"OK, I'm now in HERE but I still can't find it"

"Its in there la. There. See?"
"OK. So where's the RAM?"
"RAM? What RAM?"

"OK, now we have the RAM, where's the HDD?"
"HDD? What HDD?"

"OK, now the PC can boot up with no beeps. Hey, where's the Keyboard and mouse?"
"Its there what."
"OK, I can take the keyboard from here......... and mouse from here........."
"No. NOOOOOOOOOOOOO. OK! OK! I give whatever you want! Just don't cannibalise.."
"..like what your staff did to this poor old PC, right?"

SOIC to DIL Adaptor Part II

Once the euphoria has died down, sanity came back through the back door and slapped me hard against the reality of it all. OK, one, so now I have the adaptor. And two, I do not have any SMT chips. And worse of all, three, the thick legs of the SOIC Adaptor cannot fit into the programmer's IC socket.

But on the bright side, I have found my 12 year old green ZIF (zero insertion force) IC socket which I have put off many times on soldering it to a circuit board as to me, it was too precious. So precious that I kept it away and have actually forgotten all about it. It was not until I decided to look for bits and pieces (I do this while thinking about solutions) did this dear socket presented itself to me. I was still thinking about how to fit both the ZIF socket and the adaptor into the programmer when I realised that the answer was in front of me!

All I needed to do was to use some stripboard to create a medium to hold both the SOIC adaptor, the ZIF socket and the thin legs. Brilliant! And so, Lady Luck smiled on me and I was able to skip to Pasar Road for the ingredients.

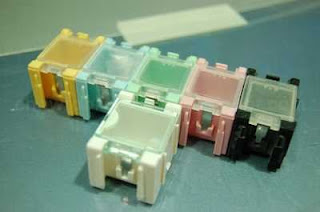

OK, apart from buying the real stuff, I bought some
yellow SMT LEDs. And not only that, the small box
with spring-loaded cover. The white box is the latest
design, which is a bit bigger than the current but
cheaper black box.

Although the stacking lugs are compatible, its
still too big and no, I am not going to buy more
of the new boxes. I need them to store the SMT
LEDs and not start a collection.

And so, this is what I actually got from Pasar Road. Only
the green ZIF and stripboard are from my own. The ZIF
socket is very important as the programmer that I have
does not have one and so, when I insert and pull out the
chips again and again, I would either wear out the pins
(or legs) and also accidentally bent them. Because the
legs are so fragile, once you bend them back into shape
and do another boo-boo, they will snap off forever.

Soldering the fine legs to the stripboard is a challenge.
First, you have to solder one of the legs and also align
the pins so that they do not lean. The pins must also be
of the correct height as you need space for the melted
solder to flow into. Oh, and the most important part is
the orientation of the pins as one side is thinner and
also a bit longer. This is the side for inserting into the
programmer's IC socket.

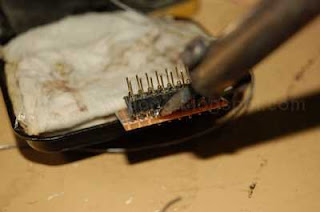

So, tilt the board a bit to let the melted solder flow
into the small space. At this time, I would also like
to remind myself that I should have bought a new
soldering tip which has a sharper end.

There. All done. Since this was my first time and also
without any other alignment tools, the let the heat of
the iron melt the black plastic and so, as they melt,
the pins went out of alignment. You can see how
uneven they are.

Make sure you also cut the stripboard's tracks because
if you do not, you are effectively shorting all 20 pins.
Also here, I have soldered the other socket which can
take in the adaptor's thick legs.

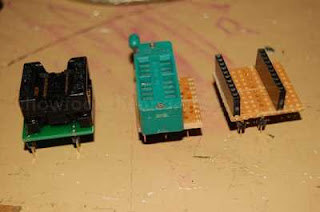

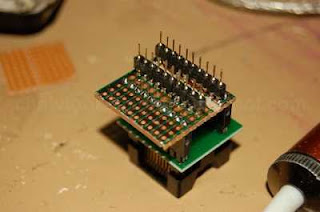

And then, I went one step further. I created another
board for the green ZIF socket and also solder in
more of those thin pins. Now, I can place the left-
most board onto the programmer. This will be the
platform for the SOIC adaptor and the ZIF adaptor.

Don't understand? Let me start again.
This is a platform board. Me stiky de
platform board to programmer socket

This is ZIF Board. Me stiky it on top platform board

If want SOIC board, me pull out ZIF board and stiky
SOIC board. Unnerstandt?

OK, so after checking for shorts, I decided to take
the test by programming a chip. Here, I am using
the ZIF board attached on top of the platform.

Success!

The Digital Meters

On the way to my regular shop, I stopped over one of their competitor's store and was amazed they do sell the same meters. What's more, they even display it in a way where you can test them! But at this moment in time, they were not switched on and so, I cannot tell if the LED displayed were Red, Green or Blue. Usually, they're Red. But the prices are very very cheap, unfortunately. So much so, I am not sure if my regular shop knows about this but buying from them, I get them at about RM7.00 more and with calibration.

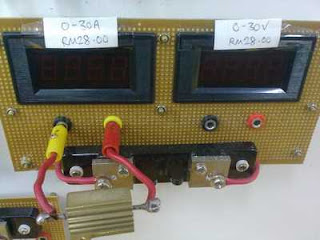

Wow. You have both the voltage and current meters
